The PC*MILER Web map window

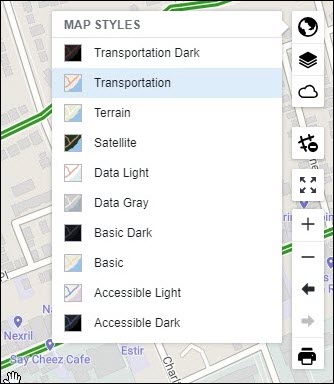

Click the globe icon to select one of 10 map styles.

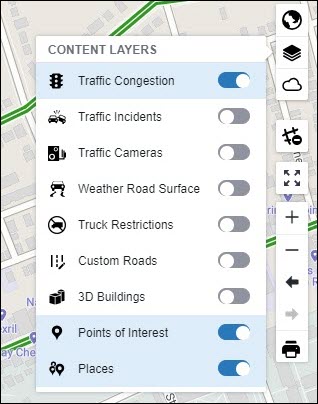

Click the layers icon to display or hide map content such as Traffic Congestion or Truck Restrictions.

Route modifiers are roads you want PC*MILER to avoid, favor, or close when it generates a route. Modifiers are created in the ContentTools web tool.

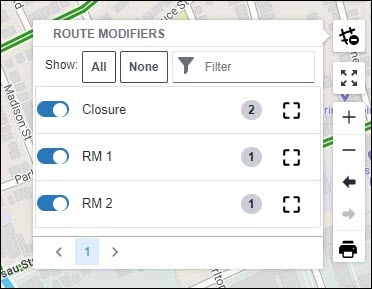

Click the route modifiers icon on the map to display your available sets of modifiers. Use the slider bar to toggle whether or not those modifiers are displayed on the map. (If you want to apply modifiers to route calculations, they must be selected under Route Options.)

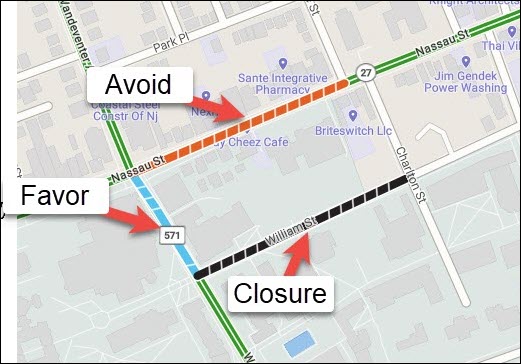

Modifiers are displayed on the map as color-coded dashed bars on the roads they impact: red (avoid); blue (favor); black (closure).

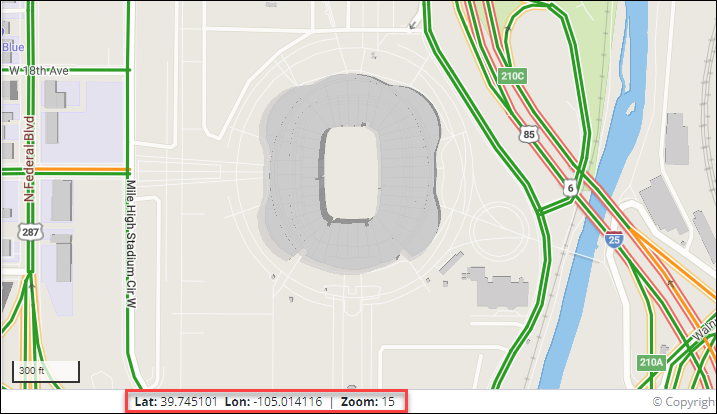

The bottom of the map displays the GPS coordinates where your cursor is on the map as well as the map zoom level from 1 (full earth view) to 22 (street level). Certain map features are only visible when zoomed in or zoomed out to certain levels on the map.
