Update rest stops

If these requirements are not ALL met, you cannot use all parts of this feature. This topic may not apply to you at all.

Requirements for your company:

  • It must own the licenses for TruETA and TMWGoTripPlanning to use the Trip Planning functionality. If your company does not have both licenses, you will not see the image7 Trip Planning icon or the Trip Planning screens.

  • It must be licensed for and running SystemsLink 2018.3 or later.

  • It must be licensed for Trimble Maps to see your stops on the Stop Detail screen.

When TruETA plans a trip, it suggests Rest Stops between stops. A rest stop is where you can park, take a break, or rest (including the 34-hour reset).

You can update a stop’s duration and location.

The number of alternate suggested rest stops depends on your company’s TruETA setup.

Examples include:

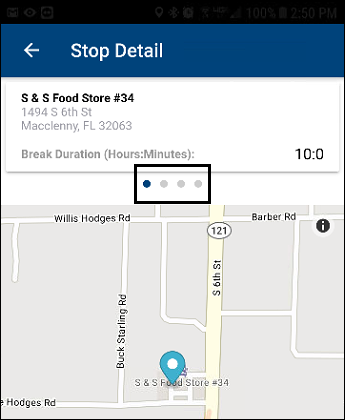

  • Multiple rest stop suggestions
    This illustration shows an example with four suggested alternative rest stop locations.

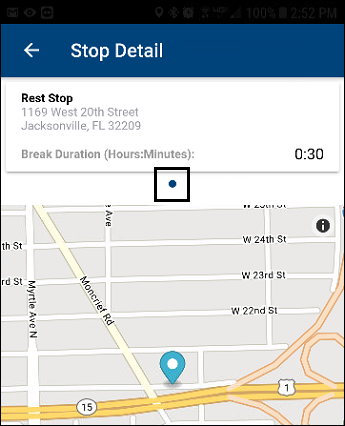

  • Single rest stop suggestion
    This illustration shows an example of one suggested rest stop location.


To update a rest stop:

  1. Load the Trip Planner screen.

  2. On the rest stop that you want to change, tap Edit.

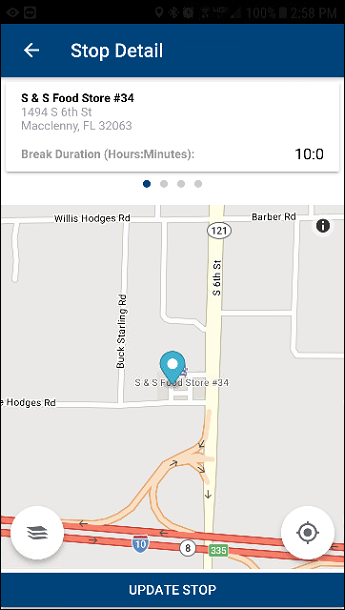

    The Stop Detail screen opens.


  3. Do one of the following:

    • Change the rest stop location

      Note: Your company determines how many alternate suggested rest stops are available.

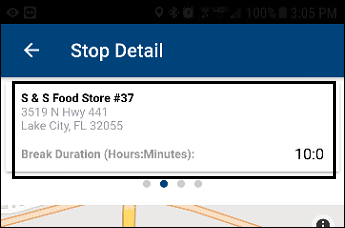

      To change the rest stop location, drag the rest stop to the left or right.


      The screen refreshes and displays details about the rest stop.

    • Change the length of the rest stop

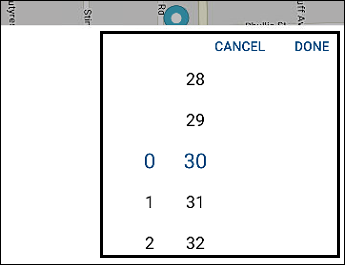

      1. Tap Break Duration (Hours:Minutes).
        A time calendar appears.


      2. Make changes as needed.

      3. Tap Done.

  4. Tap UPDATE STOP.
    The Planning Trips screen refreshes and displays your changes.
