3G-TM Advanced Mode Planning integration overview

Knowing what you will pay—​and how much you will charge—​to complete your customers' requests for shipments is critical to your success. Coupled with TMW’s 3G-TM Rating Integration, 3G-TM Advanced Mode Planning gives you access to the 3G-TM optimization algorithm.

This lets you cover more loads through operational efficiencies by planning executable loads using real-time constraints.

  • TMW sends single pickup/drop orders to 3G-TM for Mode Optimization.

  • 3G-TM returns loads representing consolidated trips, single LTL shipments, and/or single cross docked moves.

  • 3G-TM returns the cost of each load. TMW re-rates, using enhanced rating.

    Note: All carrier rates must be in 3G-TM.

Web services handle all communication. TMW is the system of record for customers, carriers, shippers, and consignees.

Prerequisites

To use TMW’s 3G-TM Advanced Mode Planning integration, you must install:

  • The TMW 3G-TM Integration Service
    This service provides the connection between TMW Operations and 3G-TM.

  • Master Data Management Service
    This service sends updates made to carrier, customer, and trip data in your TMWSuite database to 3G-TM.

  • Health Check
    Use this utility for troubleshooting issues with 3G-TM and TMW.

  • Data Migration Utility
    Use this utility to migrate carrier and customer information from your TMWSuite database to 3G-TM.

For details, see the Installing the TMW 3G-TM Integration Service guide.

Order data flow

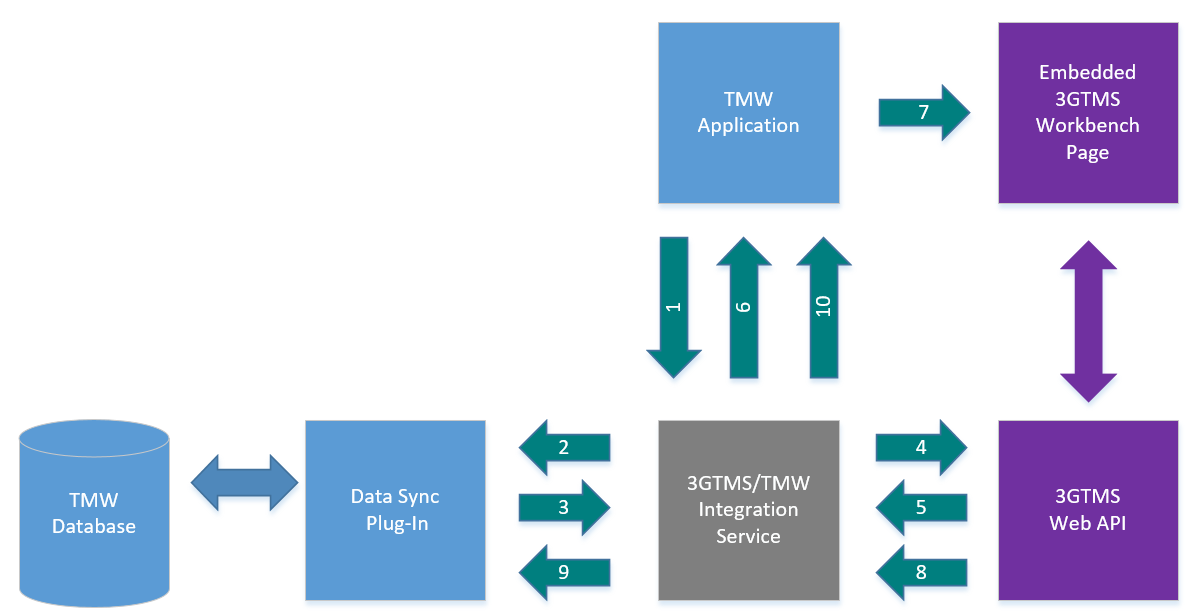

This diagram shows the flow of data when an optimization request is submitted.


  1. User in TMW application identifies one or more orders to be optimized with the 3G-TM algorithm. These order numbers are sent to the Integration Service with a Set ID.

  2. The Integration Service sends the request to the Data Sync plug-in.

  3. The Data Sync plug-in returns the completed order object(s) to the Integration Service in the TMW Unified API format.

  4. The integration service converts the TMW order(s) to a 3G-TM order format and sends this to the 3G-TM Web API.

  5. Success/Failure is reported to the integration service.

  6. Success/Failure is reported to the TMW application.

  7. Selected order set is loaded in the 3G-TM embedded web page.

  8. As loads (routes) are released, they are pushed to the Integration service.

  9. Loads (routes) are converted to TMW format and forwarded to the Data Sync plug-in to update the database.

  10. When all routes are processed, Integration Service sends Success/Failure to the TMW application.

Optimization mappings

These topics provide the mappings used with 3G-TM Advanced Mode Planning.

Order details

TMW field name 3G-TM field name

Bill To ID + "CLI"

Client Trading Partner

Consignee Earliest Date/Time

Earliest Del Appt

Consignee Earliest Date/Time

Earliest Delivery

Shipper Earliest Date/Time

Earliest Pickup Appt

Shipper Earliest Date/Time

Earliest Ship

Consignee Latest Date/Time

Latest Del Appt

Consignee Latest Date/Time

Note: Alternate field for dates is the appointment fields, which is controlled by the [IntegrationService]UseAppointmentTimesForOrder INI setting.

Latest Delivery

Shipper Latest Date/Time

Latest Pickup Appt

Shipper Latest Date/Time

Latest Ship

lgh_number

Order Number

ord_number

Reference Number

Integration Service Organization

Organization

Consignee ID + "-CUS"

Receiver Trading Partner

Shipper ID + "-CUS"

Shipper Trading Partner

Shipper Address Information

Source Location

Freight details

TMW field name 3G-TM field name

Commodity code

Note: TMW commodity data is not synced with 3G-TM commodity. For more information, see Verifying commodity profiles include NMFC classes.

Freight Class

fgt_description

Description

cmd_NMFC_Class

Freight Class

fgt_volume

Gross Vol

fgt_volumeunit

Gross Vol units

fgt_weight

Gross Wt

fgt_weightunit

Gross Wt units

fgt_count or fgt_count2

  • HU Count

  • Pieces

fgt_countunit or fgt_count2unit

Note: This value determines the mapping of the fgt_count.

  • If the count unit in TMW is pallets, the data is mapped to Handling Units

  • If the count unit is pieces, the data is mapped to Piece Count

  • If it is neither, it is not mapped

  • If the count2 unit is pallet and the count1 unit is not, it is mapped to Handling Units.

  • If the count2 unit is pieces and the count1 unit is not, it is mapped to Piece Count

  • HU Count

  • Pieces

fgt_length x fgt_width x fgt_height

Note: Dimensions are required to do parcel rating.

L x W x H

fgt_lengthunit x fgt_widthunit x fgt_heightunit

L x W x H Units

fgt_number

Line #

fgt_volume

Net Vol

fgt_volumeunit

Net Vol units

fgt_weight

Net Wt

fgt_weightunit

NetWt units

Miscellaneous details

TMW field name 3G-TM field name

List of Line Item pay types entered as Pay Details

Accessorials

TMW ord_number

Reference Number
