Weather Notification Overview

First available in TMW Operations V.2025.6

The Weather Notification feature provides real-time weather insights to improve trip planning and driver safety by integrating weather data. The weather data is integrated into the Planning Worksheet, Route Planner and Trip Planner. These Weather-related columns have been added in those windows:

  • WeatherImpactAt

  • WeatherImpactEstimatedTime

  • WeatherImpactRoadRisk

  • WeatherImpactSummary

  • WeatherTripURL

  • WeatherPublishedOn

All trips across status categories (Planned, Dispatched, Started, Not Started) are checked for weather impact. Trip planners can view risk and make routing changes before or during dispatch.

General requirements

Before you can use the Weather Notification functionality in TMW Operations, you must:

  • Have an account with TTC.

  • Have a CloudHubConnector account.

  • Set the WeatherNotifications General Info setting to Y.

  • Create a Weather view through File > Board Setup to view the weather-related columns.
    For additional information on Board Setup see Understanding board views.

Contact your Trimble Account Executive for more information on obtaining an account for TTC and CloudHubConnector.

Using the Weather Notification feature

Once all general requirements are met you can use the Weather Notification feature. The columns will be visible in the Planning Worksheet, Route Planner and Trip Planner.

In this example, we will use the Planning Worksheet:

  1. Go to Operations > Planning Worksheet
    The Planning Worksheet window opens.

  2. Open the Weather view created board and make selections in the Trips view and date selection range.

  3. Select the Retrieve button in the Trips view to retrieve trips.

  4. Locate the trip(s) that you are looking to plan. The Weather Notification columns display in the grid. If there is a weather-related impact, it will display in the columns with updated alerts.


You can rearrange the columns to display on the window where you would like. Select the column and drag it to the area you would prefer. Right-click and Save Layout to save your changes.

Reviewing weather notifications

You can review the fields in the Weather Notification columns to determine the best way to dispatch your trip.

Field Definition

WeatherImpactAt

The location of the weather alert

WeatherImpactEstimatedTime

Estimated time the weather impact is occurring

WeatherImpactRoadRisk

The severity of the weather impact affecting travel

WeatherImpactSummary

Provides information on the type of weather
For example: Rain, snow etc.

WeatherTripURL

Provides a hyperlink to the Trip Viewer to show more details about weather alerts

WeatherPublishedOn

Date and time the weather alert was received

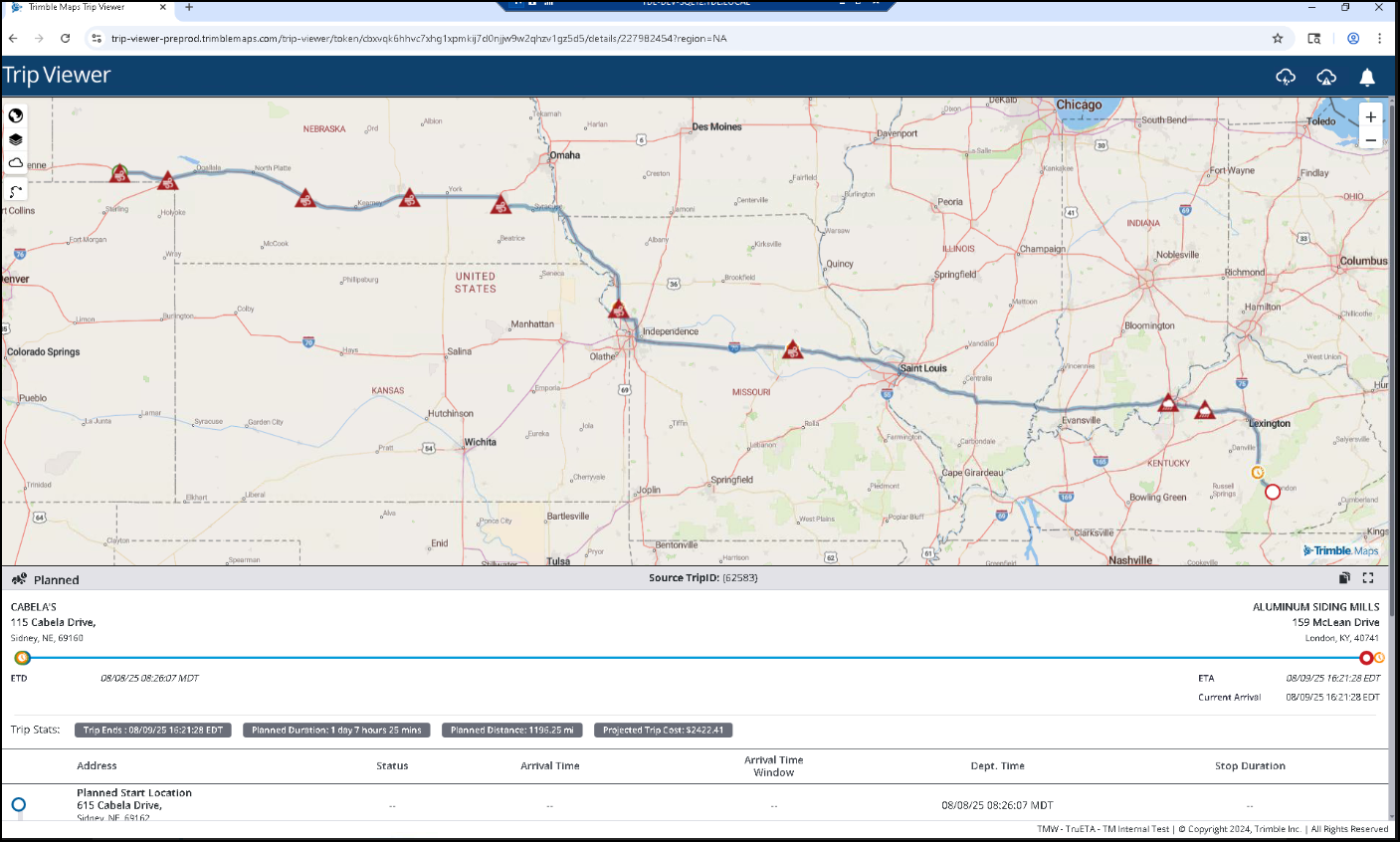

The WeatherTripURL hyperlink when selected opens the Trip Viewer window to review the specific weather alert in more detail.
