Find Near

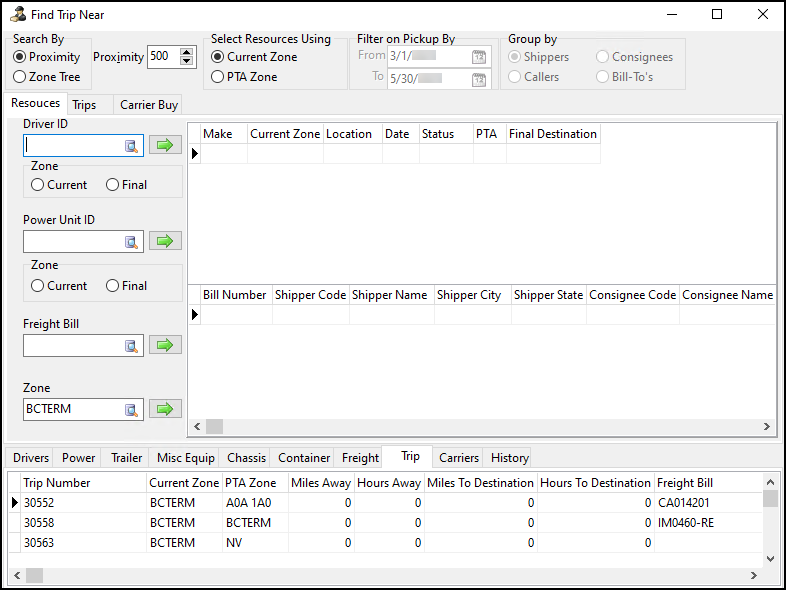

The Find Near window.

You can use the Find Near window find trips, freight bills, carriers, and resources that are near each other.

To use this feature effectively:

  • Zone codes must have latitude and longitude values set up in Codes Maintenance. The Find Near feature calculates distances using zone codes.

  • Mileage Server must be running.

  • Security settings should be set up for each user who needs to use the feature.

Give a user access to Find Near

  1. Go to Security Configuration > Security > Tabs Setting > Dispatch.

  2. Select the User dropdown menu. A list of users opens.

  3. Select a user. The list of users closes.

  4. In the Find Near - Bottom Tabs pane, select the checkboxes next to the tabs.

    The user will only be able to see the tabs in the Find Near window that you select.

  5. Select Apply to User. The user’s security settings update.

Access Find Near

In Multi Mode Dispatch, you can open the Find Near window from trips, freight bills, and resources.

Right-click a trip, freight bill, or resource to open the shortcut menu, then select any option labeled Find Near.

The name of the option varies, but it works the same way once it is opened. The only difference is what information automatically populates in the window. The options are:

  • Find Carrier Near (when you select a carrier)

    • Opens to the Resources tab.

    • The carrier’s rate zone is entered in the Zone field.

  • Find Carrier Near (when you select a trip)

    • Opens to the Trips tab.

    • The trip number is entered in the Trip Number field.

    • The Carriers > Area Service results tab opens.

  • Find Chassis Near

    • Opens to the Resources tab.

    • The chassis’s current zone is entered in the Zone field.

    • The Chassis results tab shows nearby chassis based on the zone.

  • Find Containers Near

    • Opens to the Resources tab.

    • The container’s current zone is entered in the Zone field.

    • The Container tab shows nearby containers based on the zone.

  • Find Drivers Near

    • Opens to the Resources tab.

    • The driver ID you selected is entered into the Driver ID field.

    • The driver’s current zone is entered into the Zone field.

    • The Drivers results tab shows nearby drivers based on the zone.

  • Find Equipment Near

    • Opens to the Resources tab.

    • The equipment’s current zone is entered in the Zone field.

    • The Misc Equip tab opens and shows nearby equipment based on the zone.

  • Find Load for Driver > Driver’s Current Zone

    • Opens to the Resources tab.

    • The driver ID is entered in the Driver ID field.

    • The driver’s current zone is entered in the Zone field.

    • The Freight results tab opens.

  • Find Load for Driver > Driver’s Final Zone

    • The driver ID is entered in the Driver ID field.

    • The Zone option below the Driver ID field is set to Final.

    • The Freight results tab opens.

  • Find Power Units Near

    • Opens to the Resources tab.

    • The power unit’s ID is entered into the Power Unit ID field.

    • The power unit’s current zone is entered into the Zone field.

    • The Power results tab shows nearby power units based on the zone.

  • Find Trailers Near

    • Opens to the Resources tab.

    • The trailer’s current zone is entered in the Zone field.

    • The Trailer results tab shows nearby trailers based on the zone.

  • Find Trips Near

    • Opens to the Resources tab.

    • The trip or resource’s current zone is entered in the Zone field.

    • The Trip results tab opens and shows nearby trips based on the zone.

After you have opened the Find Near window, you can change any of the information that was entered automatically. For example, if you selected Find Drivers Near, you can still edit the driver ID, enter a power unit or freight bill, or change the zone. The system defaults those values based on what you selected, but the window is fully editable.

Set search parameters

You can set a distance or date range to limit search results.

  1. Select a Search By option:

    • Proximity searches using the value you put in the Proximity field. The distance unit is kilometers.

    • Zone Tree searches within the zone in the Zone field and all its sub-zones.

  2. Choose a Select Resources Using option:

    • Current Zone limits results to the resource’s current zone.

    • PTA Zone (Projected Time of Arrival Zone) limits results to the resource’s projected arrival zone.

  3. Set a date range for Filter on Pickup By.

    This limits the Shippers results list to shippers that have freight bills with a Pick Up By date that falls within the date range. This option is only available when you have the History tab selected on the results pane.

  4. Choose a Group by option. You can group by:

    • Shippers

    • Consignees

    • Callers

    • Bill-To’s

    This option is only available when you have the History tab selected on the results pane. It sets how search results will be grouped.

Resources search

You can choose to search for results near a specific driver, power unit, freight bill, or zone.

Search near a driver

You can search for resources that are near a specific driver.

  1. Select Resources. The Resources tab opens.

  2. Do one of the following:

    • Select the Driver ID field and enter a driver ID.

    • Select A magnifying glass icon. search and select a driver ID from a list.

  3. In the Zone pane below the Driver ID field, select either Current or Final.

    • Current
      Searches within the driver’s current zone.

    • Final
      Searches within the zone where the driver will be at the end of their current trip.

  4. Select An arrow icon. find. Resources that match the search parameters appear on the results tabs.

Search near a power unit

You can search for resources that are near a specific power unit.

  1. Select Resources. The Resources tab opens.

  2. Do one of the following:

    • Select the Power Unit ID field and enter a driver ID.

    • Select A magnifying glass icon. search and select a power unit ID from a list.

  3. In the Zone pane below the Power Unit field, select either Current or Final:

    • Current uses the power unit’s current zone.

    • Final uses the zone where the power unit will be at the end of its current trip.

  4. Select An arrow icon. find. Resources that match the search parameters appear on the results tabs.

Search near a freight bill

You can search for resources that are near a specific freight bill.

  1. Select Resources. The Resources tab opens.

  2. Do one of the following:

    • Enter a freight bill in the Freight Bill field.

    • Select A magnifying glass icon. search and select a freight bill from a list.

  3. Select An arrow icon. find. Resources that match the search parameters appear on the results tabs.

Search near a zone

You can search for resources that are near a specific zone.

  1. Select Resources. The Resources tab opens.

  2. Do one of the following:

    • Enter a zone code in the Zone field.

    • Select A magnifying glass icon. search and select a zone code from a list.

  3. Select An arrow icon. find. Resources that match the search parameters appear on the results tabs.

Trips search

You can search for resources near a trip.

  1. Select Trips. The Trips tab opens.

  2. Enter a trip number in the Trip Number field.

  3. Select Find. The trip’s legs appear.

  4. Choose the trip legs you want to search near:

    1. Right-click a trip leg and select Mark Start Sequence The leg is marked as the beginning of the search range.

    2. Right-click a trip leg and select Mark End Sequence. The leg is marked as the end of the search range. Resources that match the search parameters appear in the results tabs.

View find results

After you select The History results tab. find, resources that match your search criteria appear on the results tabs.

The results tabs.

Results on every tab except Freight are shown regardless of their status. For example, drivers and power units appear even if they are assigned to a trip.

The results tabs include:

  • Drivers

  • Power

  • Trailer

  • Misc Equip

  • Chassis

  • Container

  • Freight
    Only freight bills in an Available or Docked status are shown. Freight bills that are assigned to trips are not included in the results.

  • Trip

  • Carriers

  • History

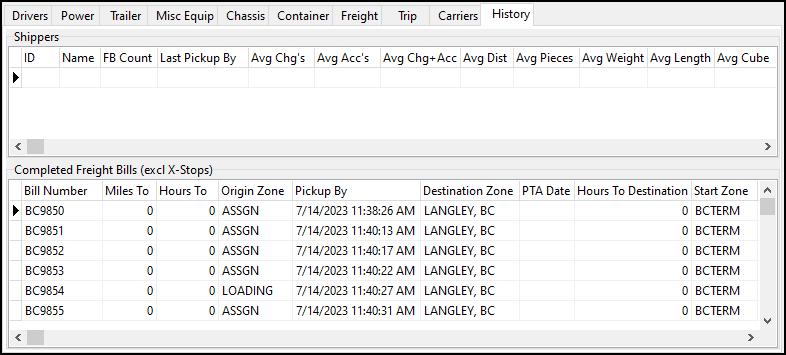

    The History tab has two grids.

    The History tab grids.

    The Shippers grid shows a summary of each shipper. The Completed Freight Bills grid shows details for the shipper you select on the Shippers grid.

    When you open this tab, the Filter on Pickup By and Group By filter options become available.

    The Pickup By and Group By filter options.

Find a carrier for a freight bill

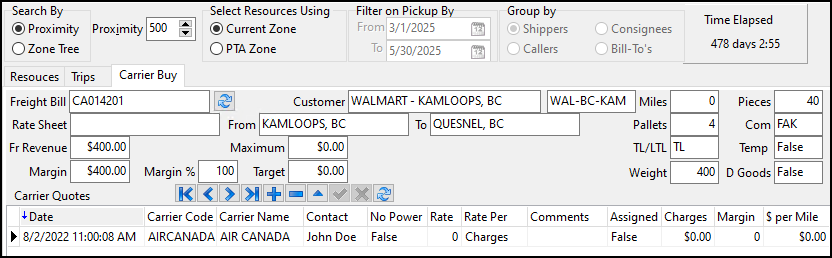

The Carrier Buy tab.

You can use the Carrier Buy tab to find a carrier for a freight bill. It shows target margin rates that you are expected to obtain when you secure a carrier to move the freight bill.

When you are viewing a freight bill you want to match to a carrier, a Time Elapsed timer appears.

The Time Elapsed counter.

This allows you to see if an order has not been tendered to a carrier within a specific period of time.

To enter a bill in the Freight Bill field on the Carrier Buy tab:

  1. Select Trips. The Trips tab opens.

  2. Select the Trip Number field and enter a trip number.

  3. Select Find. The trip’s first freight bill populates the Freight Bill field in the Carrier Buy tab. The freight bill’s data populates automatically:

    Field Description

    Freight Bill

    Shows the first freight bill on the trip.

    Customer

    Shows the freight bill’s Bill-To client.

    Rate Sheet

    Shows the rate sheet attached to the default vendor.

    If the Site ID type is LTL, reference the rate sheet that has a sheet class of LTL. If the Site ID type is Truckload (TL), reference the rate sheet that has a sheet class of TL.

    Miles

    Shows the mileage for the freight bill.

    Pieces

    Shows the total pieces for the freight bill.

    Pallets

    Shows the total number of pallets for the freight bill.

    Com

    Shows the commodity for the freight bill.

    TL/LTL

    Shows either TL or LTL as the freight bill type.

    Depending on the freight bill type, the Margin, Margin %, Target fields change functionality.

    Temp

    Shows whether the commodity is temperature controlled.

    Weight

    Shows the weight for the freight bill.

    D Goods

    Shows whether the default commodity includes dangerous goods.

    Fr Revenue

    Shows the base freight bill charges for the freight bill.

    Maximum

    Shows the Max value that was entered against the freight bill on the Billing tab in Customer Service. It sets the maximum amount of IP charges that can be allocated against the bill. If the IP charges exceed this value, a warning appears if you select Use Carrier.

    Depending on the Allow Edit of Maximum IP Amount security setting, you may then be prevented from assigning the carrier on the Carrier Assign window itself. You can still adjust the IP charges there, however, in order to assign the carrier.

    Margin

    • LTL: Calculated field based on the Margin % field using this formula:

      (TLORDER.CHARGES-(TLORDER.CHARGES*MARGIN%)).

    • TL: Calculated field based on the Margin % field using this formula:

      (TLORDER.CHARGES-(TLORDER.CHARGES*MARGIN%)

    Margin %

    • LTL: The default configuration value that is set by the administrative user.

    • TL: Calculated field based on this formula:

      (TLORDER.CHARGES-(TLORDER.ROLLUP_MILES*TARGET TO))/ TLORDER.CHARGES

    Target

    • LTL: Shows the calculated rate from the rate sheet that has been assigned to the default vendor. The rate sheet that displays must have pick up and delivery zones that match and LTL as its sheet class.

    • TL:

      • Target From: Shows the minimum mileage rate from the rate sheet that has been assigned to the default vendor. The rate sheet that displays must have pick up and delivery zones that match and TL as its sheet class.

      • Target To: Shows the mileage rate from the rate sheet that has been assigned to the default vendor. The rate sheet that displays must have pick up and delivery zones match, TL as its sheet class, and the rate break not set as minimum.

Add a carrier quote

The Carrier Quotes grid shows records of contact with potential carriers. You can add contact records as needed.

  1. Select The Insert Record icon. Insert Record. A record for the current date and time appears on the grid.

  2. Do one of the following to enter a carrier code:

    • Select the Carrier Code field and enter a vendor ID.

    • Double-click the field to open a list of vendor IDs and select one from the list.

      The carrier’s information from their vendor profile populates the grid.

  3. Select the Contact field and enter the contact’s name.

    This field populates automatically if the vendor has a contact set up in Customer and Vendor Profiles.

  4. Double-click the No Power field to toggle it between True or False. Set this value to False if the carrier has power units.

  5. Select the Rate field and enter a rate:

    • If the shipment is LTL, enter the total rate the carrier is providing.

    • If the shipment is TL, enter a dollar per mile rate.

      The Charges, Margin, and $ per Mile fields calculate automatically.

  6. (Option) Select the Comments field and enter any comments.

  7. (Optional) Select the Expire Date and enter a date.

  8. Select The Post Edit icon. Post Edit.

Carriers tab

The Carriers tab shows details about potential carriers. It has five sub tabs.

Area Service

The Area Service tab shows carriers that match your search criteria.

You can use the Equipment field to restrict the carriers list to carriers that have a specific type of equipment. You can use the Travel Mode field to narrow the list by travel modes such as air, ocean, rail, or road.

Rating

The Rating tab shows vendors who are attached to rate sheets that fit your search criteria. You can use the TruckMate, External, or Carrier Connect sub tabs to search in different system areas.

Load Request

The Load Request tab shows load requests that match your search criteria.

You can create, edit, and delete load requests.

Create a load request

  1. Right-click within the Load Request grid. The shortcut menu opens.

  2. Select Enter a Load Request. The Enter a Load Request window opens.

  3. Do one of the following:

    • Select the Vendor Code field and enter a vendor ID.

      If the vendor is not in your system, you can enter their name manually. However, the vendor must be added to Vendor Profiles before being added to a trip.

    • Select A magnifying glass icon. search and select a vendor ID from a list.

  4. Enter contact information for the vendor, such as a contact name, phone number, and email address.

  5. Enter the Current Zone or select A magnifying glass icon. search to select a zone.

  6. Enter the Destination Zone or select A magnifying glass icon. search to select a zone.

  7. Select the A calendar icon. calendar to change the Dates fields.

    The Dates range defaults to the current date/time as the start date and one day later as the end date. When the end date has passed, the load request is removed from the system.

  8. Do one of the following:

    • Select the Equipment field and enter an equipment class.

    • Select A magnifying glass icon. search to select an equipment class from a list.

  9. Select OK. The load request appears on the grid.

After you have created a load request, you can edit or delete the request by selecting Edit Load Request or Delete Load Request from the shortcut menu.

Active Trips

The Active Trips tab shows all active trips for the selected carrier.

Carrier History

The Carrier History tab shows previous orders for the freight bill on the Carrier Buy tab. Carrier History has its own sub tabs:

Filter search results

You can filter results on any of the Carrier History tabs using the Search Information pane.

Field Description

From Zone/To Zone

These fields default to the Start Zone and End Zone of the freight bill in the Freight Bill field on the Carrier Buy tab. You can change the zone codes, or you can clear the options to not filter by zone codes at all.

From State/To State

Select these checkboxes to filter based on the state or province. These fields populate based on the freight bill in the Freight Bill field on the Carrier Buy tab.

Vendor

Filters results by vendor ID.

Commodity Class

Filters results by commodity class.

Date Range

Filters results within a date range. Right-click this field to choose from preset date ranges.

The preset date shortcut menu options.

NOTE: The app config DISPATCH.EXE > CarrierHist Days can be used set a default date range for these fields.

View Style

There are two view style options:

  • Normal
    Shows each individual freight bill and carrier.

  • Aggregate
    Shows one line per unique carrier ID.

Record Summary

Choose from one of the two Record Summary options:

  • All
    Shows all record instances of the freight bill, including credit bills.

  • Original/Rebill
    Hides credit bills.

Select Options for Exact Match

If you select any of these options, then an exact match will be done against the freight bill on the Carrier Buy tab.

These options are only available if you are searching by freight bill in Resources, the Trips tab, or the Carrier Buy tab. The driver, power, and zone searches do not involve a freight bill, so these options are not available.

Payables

Shows a summary of payables information about vendors.

Carrier Summary

Shows carrier-specific information for vendors.

Carrier Quotes

Shows all carrier quotes users have entered. When you enter a carrier rate quote on the Carrier Buy tab, it usually only applies to that specific trip or leg. However, this information might be relevant for other trips or legs. For example, you might want to see what quotes you received in the past for similar trips.
