Using Places in PC*Miler

Places are custom locations—from important business sites to rest and fuel stops—that you can create, name and manage in ContentTools. Once created, Places can be shared with PC*Miler and added as stops when generating a route.

The PC*Miler database also includes thousands of pre-defined Places you can add as stops, including trucks stops, weight stations, vehicle repair services and much more. To help keep them organized, every custom Place is stored in a Place Set.

Viewing Your Places

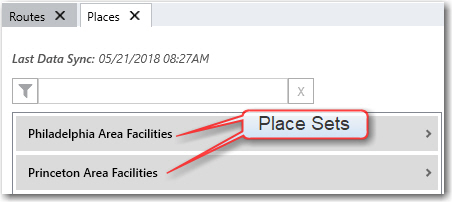

Places created in Content Tools and shared with PC*Miler can be viewed in Tools > View Places. The Places panel will show all of your available custom Place Sets.

VtGSftQJ5fw89GS zab1fROtb gZjEvv5g

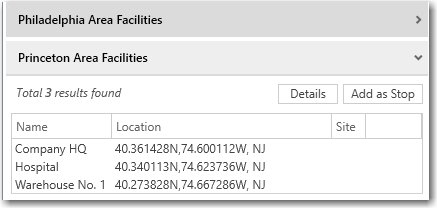

Click the arrow next to a Place Set to list the Places within that set. Or, you can use the filter 47gvjkBVy5AT7MsoTIXVE7pOM9scuh3RTwto search by name.

EvoCyU57UGjmJdgnZBH83h3AiCXnEP0 1g

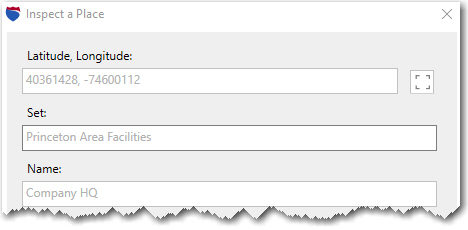

Double click the name of a Place to zoom to it on the map. Single click it and then click Details to open the Inspect a Place dialog. Inspect a Place shows all of the details you entered about the Place when it was created in ContentTools.

zPHybnF56827QFMuDEOp2natpQuUJjLPfw

Place information can only be viewed in PC*Miler. Changes must be made in Content Tools.

Adding a Custom Place as a Stop

Using custom Places can help you more quickly and accurately enter stops on a route, especially for locations visited regularly. There are multiple ways to add Places as stops.

In the Route Window

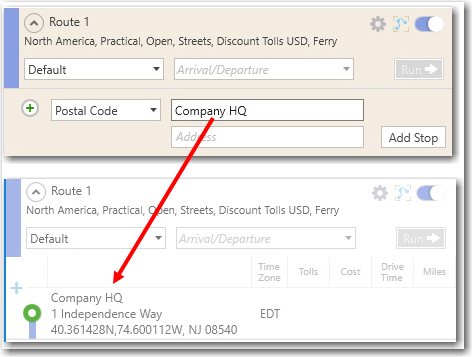

You can type a custom Place name directly in the City field in the Route window and click Add Stop. The Place will automatically be entered into the Route window.

6Nq6j7x0MNNjx dInmB90hglJn P6d7Xww

The Place must first be created in Content Tools and then shared with PC*MILER by clicking on the Sync Content button.

In the Places Panel

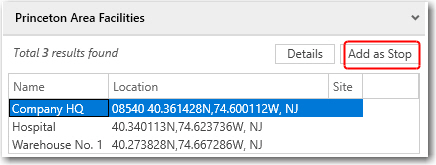

A Place can also be added as a stop directly from the Places panel by clicking the Place name and then selecting Add as Stop.

ttF8Xro1hFq cCWU9rdj4sqRuhy33ucfYQ

Adding an Pre-defined Place as a Stop

PC*Miler maintains an ever-growing Places database that includes tens of thousands of commercial locations across North America that serve the transportation industry. These Places range from distribution centers and manufacturing facilities to truck stops and Walmart overnight parking locations. They are created and updated by our team of geographic information system (GIS) map data experts.

To enter a Place as a stop in PC*Miler:

  1. In the Route window select Places in the stop type drop-down.

    j a1an8liMbtCOj80WAHGJYfBqbZettYZQ

  2. If you know the City and _ Name _ of the Place, you can enter them directly.

  3. Otherwise, under the Show All Categories drop-down, select the type of Place.

    AAkzrq5PkKFE37nai9eHoIStfrjqcZ7VBg

  4. Next, enter the City where you’d like to search.

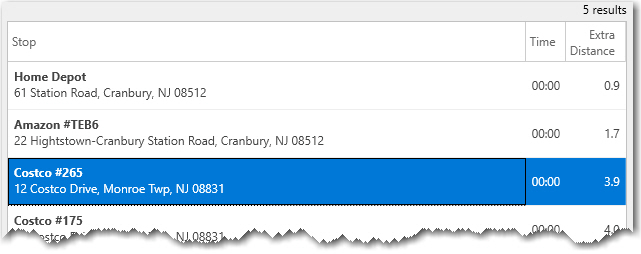

  5. A list of available Places of that type, in that city, will pop up. Select one to add it to your route.

    FTr7wk8gmvkeh3 lkMKVLMgN6fMdWS8w0g
