Automating toll cost billing

First available in TMW Operations 2023.4

If you have TMW Back Office, you can set up TMW Operations to create invoice details for toll costs automatically. The general process is:

  • Configure your system to access toll data from Trimble Maps

  • Identify a charge type for toll costs

  • Create a rate that uses the charge type

  • Use the rate when rating the order in:

    • TMW Operations: Trip Folder’s Profit and Loss tab

    • TMW Back Office: Edit Invoice Folder

Configuring toll access

Toll information is pulled from Trimble Maps web services data. You connect TMW Operations to Trimble Maps using the Token Vault.

  1. Go to Tools > System Administration > Token Vault.
    The Token Vault window opens.

  2. In the Purpose field, select Trimble Maps. Click Open.

    tokenvaultnew

  3. For each key in the Claims grid, select the key and enter a value in the Value field.

    Key Definition

    ApiKey

    API key provided by Trimble Maps that is used to authenticate all requests for data from PC*MILER Web Services. If you do not have this key, contact Trimble Transportation Support.

    DataVersion

    Version of PC*MILER you want to use to calculate distances and travel times. Options are:

    • CURRENT (default)
      Use the current version of PC*MILER

    • PCM<version number>
      Use the version of PC*MILER specified. For example, if you want to use version 36 of PC*MILER, enter PCM36.

    BaseUrl

    URL used to call data from PC*MILER Web Services via REST requests. Typically, this value is:

    https://pcmiler.alk.com/apis/rest/v1.0/service.svc

    ReportsRoute

    API endpoint used to call PC*MILER route reports, such as mileage and detail reports. Typically, this value is:

    route/routeReports

    AboutRoute

    URL used to call data from PC*MILER Web Services via SOAP requests. Typically, this value is:

    https://pcmiler.alk.com/apis/soap/v1.0/service.svc

  4. When you have finished entering all values, click save Save.

Identifying a charge type for toll costs

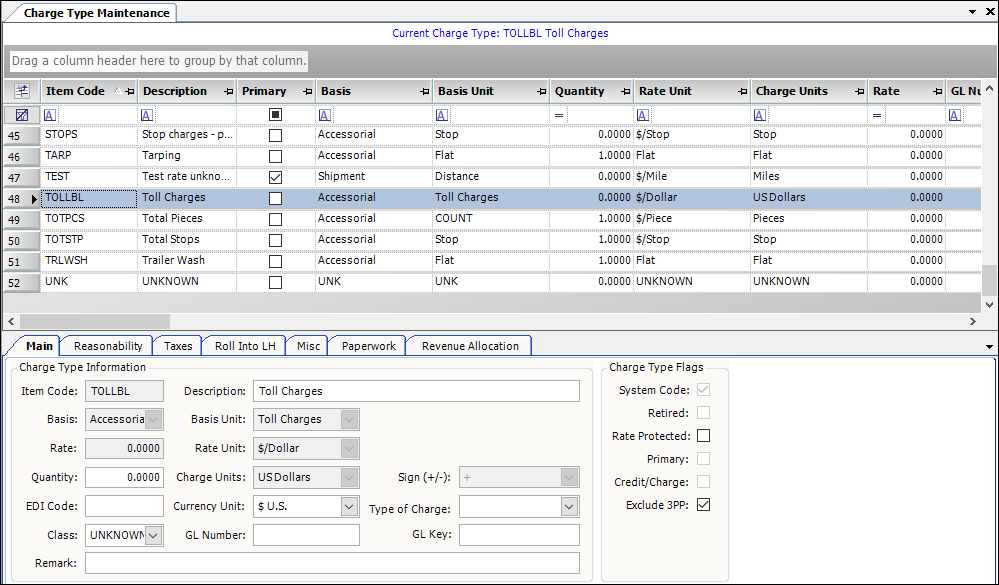

If you want, you can use the Toll Charges (TOLLBL) system charge type when creating a toll cost rate.

chgtypedefault

You can also create your own charge types in Charge Type Maintenance. These options are required:

  • Basis: Accessorial

  • Basis Unit: Toll Charges
    This value is defined in the ChrgUnitBasis label in the label file.
    Note: This basis unit works only in TMW Operations and TMW Back Office. You cannot use it with TMWSuite.

Creating a rate for toll costs

With the toll cost charge type, you can create a toll cost rate in TMW Back Office. For more information, see Creating a billing rate in the TMW Back Office online help.
