Stops

Access method:

Go to Tools > Stop Scroll.

The system retrieves stops that match all restrictions entered on all sub tabs, not just those restrictions set on the sub tab currently in the front.


The Profile button is not available for stops.

Stop scroll - Load / Delivery tab

Use this sub tab to restrict stops according to stop locations and dates/times.


Stop Company

Two fields: Stop company ID and the company name. If you make an entry in one field and press TAB, the corresponding field is automatically populated for you.

Stop City

City location of the stop. This field is automatically populated with the city of the company identified in the Stop Company field.

Arrival From/Arrival To

Arrival date range.

Departure From/ Departure To

Departure date range.

Stop Types

Custom.

Zip

ZIP or postal code for the stop’s location.

Stops Status

Custom.

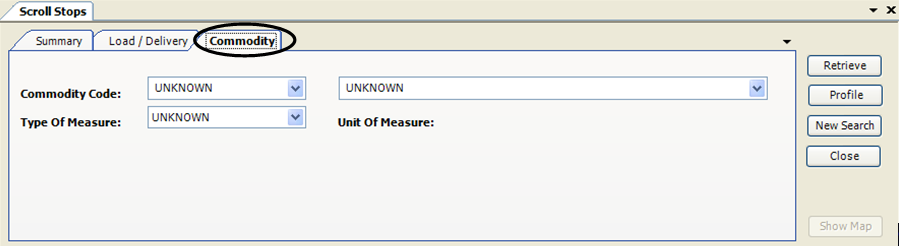

Stop scroll - Commodity tab

Use this sub tab to restrict stops according to commodity.


Commodity Code

Two fields: Commodity code and description. If you make an entry in one field and press TAB, the corresponding field is automatically populated for you.

Type Of Measure

To use this restriction, select a type of measure, such as weight. Additional fields are then shown that relate to that measurement type.


In this example, WEIGHT was selected as the measurement type. The remaining fields are:

  • Unit Of Measure
    Enter the number.

  • Low Weight Amount
    Enter the lowest number in a range of amounts.

  • High Weight Amount
    Enter the highest number in a range of amounts.
