Adding attempted stops to completed leg-based trips

First available in TruckMate 2024.1

In Trip Envelope Processing, you can now add missed attempted stops for freight bills after the fact. Depending on the type of trip, you can:

Convert existing bills/stops from actual pickups and deliveries to attempted stops
Add bills to the trip and mark them as attempted

This topic describes how to use this functionality with leg-based trips, also known as truckload or intermodal trips. You can also use it with stop-based trips, also known as LTL or P&D trips.

This functionality works with completed trips only. Using it to edit active trips may cause issues. Contact Trimble Transportation Support for assistance.

In the Stop View grid, the Mark as Attempt option on the shortcut menu is available only for bills with a pickup (P) or delivery (D) stop type.

Selecting it displays a Select Attempted Status window listing available statuses. This illustration shows pickup statuses.

ltl select

Choose an attempted status

For pickup bills, you can choose from one of these types of attempted pickup statuses:

Unmatch
Reattempt

You cannot use cancellation statuses in Trip Envelope Processing. If you want to cancel a bill, you must choose an unmatch status and then cancel the bill manually in Customer Service.

For delivery bills, you can choose from one of these types of attempted delivery statuses:

Non-reattempt
Reattempt

Once you choose a status and click OK, TruckMate matches the bill to the specified route sequence on the P&D grid.

Results based on status

Unmatch (pickup bills only)

This illustration displays the pickup bill in the grid.

Note the following:

The bill is updated to the stop type on the trip, as defined in the Select window.
The stop type is listed as a Pickup Attempt (PA).
The current status does not change. It is the same status as it was before the match.
The location of the bill on the trip does not change.
Because they were not set via statuses, TruckMate does not have arrival and departure times for this bill. You can modify this information later.

In Customer Service:

In the freight bill’s terminal plan, an Attempted Pick record (P##) appears. TruckMate assigns this record to the recently-modified trip. The pickup (P) record remains unassigned, as no pickup has yet occurred for the bill.

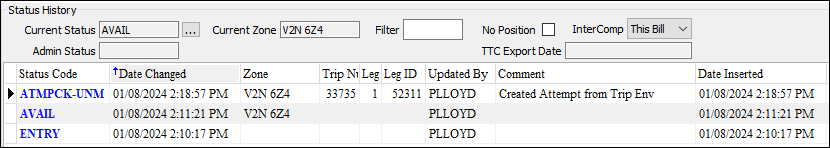

In the Status tab, the selected status appears in the bill’s history. TruckMate adds a comment to indicate the origin of the status.

Non-reattempt (delivery bills only)

This illustration displays the delivery bill in the grid.

Note the following:

The bill is added to the correct location on the trip, as defined in the Add Resource window.
The stop type is listed as a Delivery Attempt (DA).
The current status does not change. It is the same status as it was before the match.
Because they were not set via statuses, TruckMate does not have arrival and departure times for this bill. You can modify this information later.

In Customer Service:

In the bill’s terminal plan, an Attempted Delivery record (D##) appears. TruckMate assigns this record to the recently-modified trip. The D record remains unassigned, as no pickup has yet occurred for the bill.

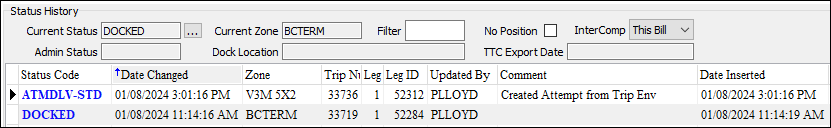

In the Status tab, the selected status appears in the bill’s history. TruckMate adds a comment to indicate the origin of the status.

Reattempt

These illustrations display pickup and delivery bills in the grid.

Note the following:

For pickup bills, the bill is updated to the stop type on the trip, as defined in the Select window.
For delivery bills, the bill is added to the correct location on the trip, as defined in the Add Resource window.
The stop type is listed as a Pickup Attempt (PA) or Delivery Attempt (DA).
A record with a Pickup (P) or Delivery (D) stop type was added.

Note: For reattempt statuses, if you attempt to move the pickup/delivery record above the attempted pickup/delivery record, an error message displays.
The current status does not change. It is the same status as it was before the match.
For pickup bills, the location of the bill on the trip does not change.
Because they were not set via statuses, TruckMate does not have arrival and departure times for this bill. You can modify this information later.

In Customer Service:

In the freight bill’s terminal plan, an Attempted Pick (P##) or Attempted Delivery (D##) record appears. TruckMate assigns this record to the recently-modified trip. The P or D record has the same trip number, as the pickup or delivery has occurred for the bill per the same trip.

Pickup

Delivery

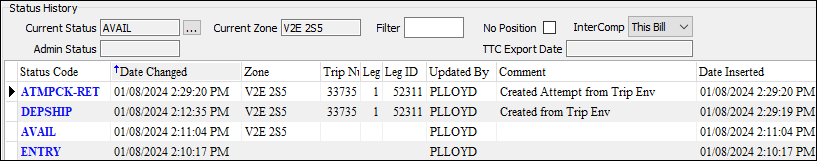

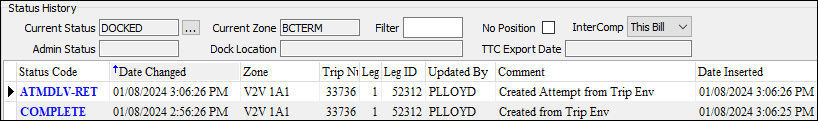

In the Status tab, the selected status appears in the bill’s history. In addition, a DEPSHIP or COMPLETE status record appears, indicating the creation of a pickup or delivery record. TruckMate adds comments to indicate the origin of the status.

Pickup

Delivery
